PACIFIC NATIONAL

(Melbourne, Victoria)







bullet

Full support of national fleet of 400 electronically-steered satellite antennas for NEC phone sets on freight locomotives

bullet

Re-development of original CSIRO design for tracking software undertaken for Optus



Electronically Steered Satcom Antenna





HAZELWOOD POWER

(Morwell, Victoria)

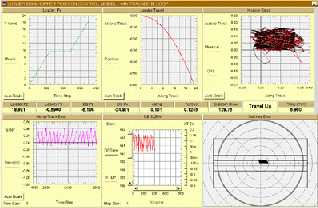

Simulation of Hopper Control System



bullet

Simulation of Hopper Control System behaviour

bullet

Boom positioning over Hopper using Predictor-Corrector Algorithms

bullet

Control implemented in Along-Track and Across-Track Axis

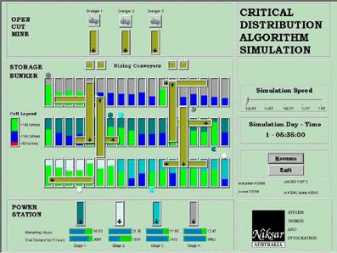

Development of Bunker Control Algorithm





bullet

Simulation of coal flow control from open cut dredgers through bunkering to power station boilers

bullet

Three distribution conveyor sub-systems under control









Operational Management Decision-Making System



bullet

A decision making system that manages risk (to supply of coal to the power station) on a continuous basis by assessing the production system and operation environment to arrive at decisions concerning:

bullet

what dig rate should be set for dredgers

bullet

what parts of the bunker should have priority for distribution of coal

bullet

when additional crews should be called in

bullet

when dredgers should be changed

bullet

Implemented in Intelligent Agent technology

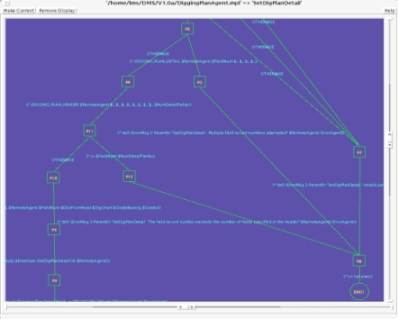

dMARS agent plan design interface



3-Dimensional Position Determination using Ultrasonics (Nixen)



bullet

A 3-D position measurement system was developed using ultrasonics to provide a measure of the position of the bucket-wheel dredger discharge boom relative to the conveyor hopper:

bullet

operates in dust and fog

bullet

10m volume coverage

bullet

0.1m precision over all environments

bullet

uses GPS-like algorithms

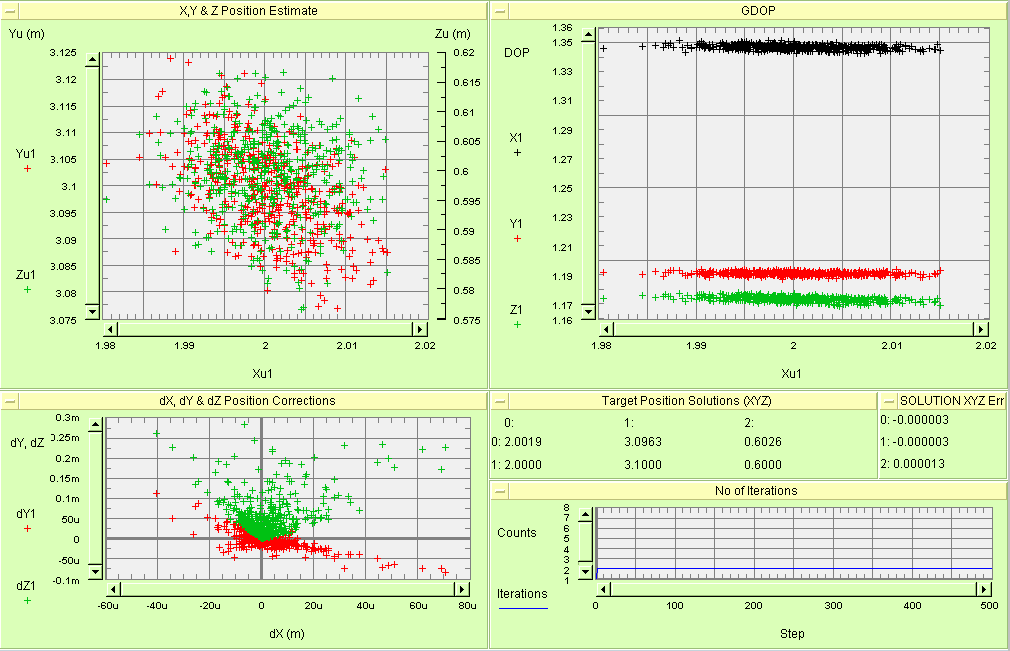

3D Position determination using Ultrasonics
